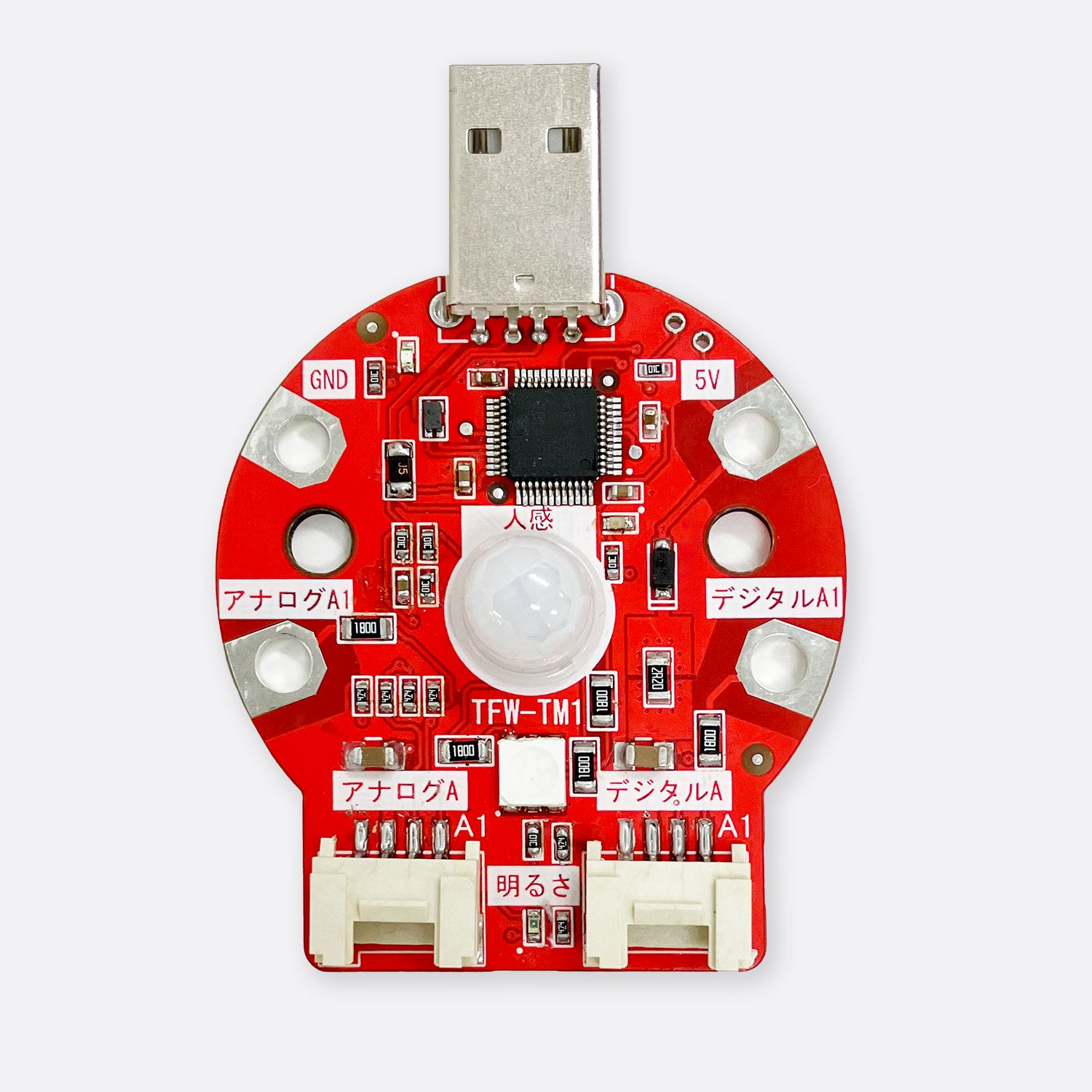

Takoratch Mini Basic Set

This is a Scratch expansion board that condenses the functions of TacoLatch into a compact version. It can be used by directly inserting it into the USB port (Type-A) of your device.

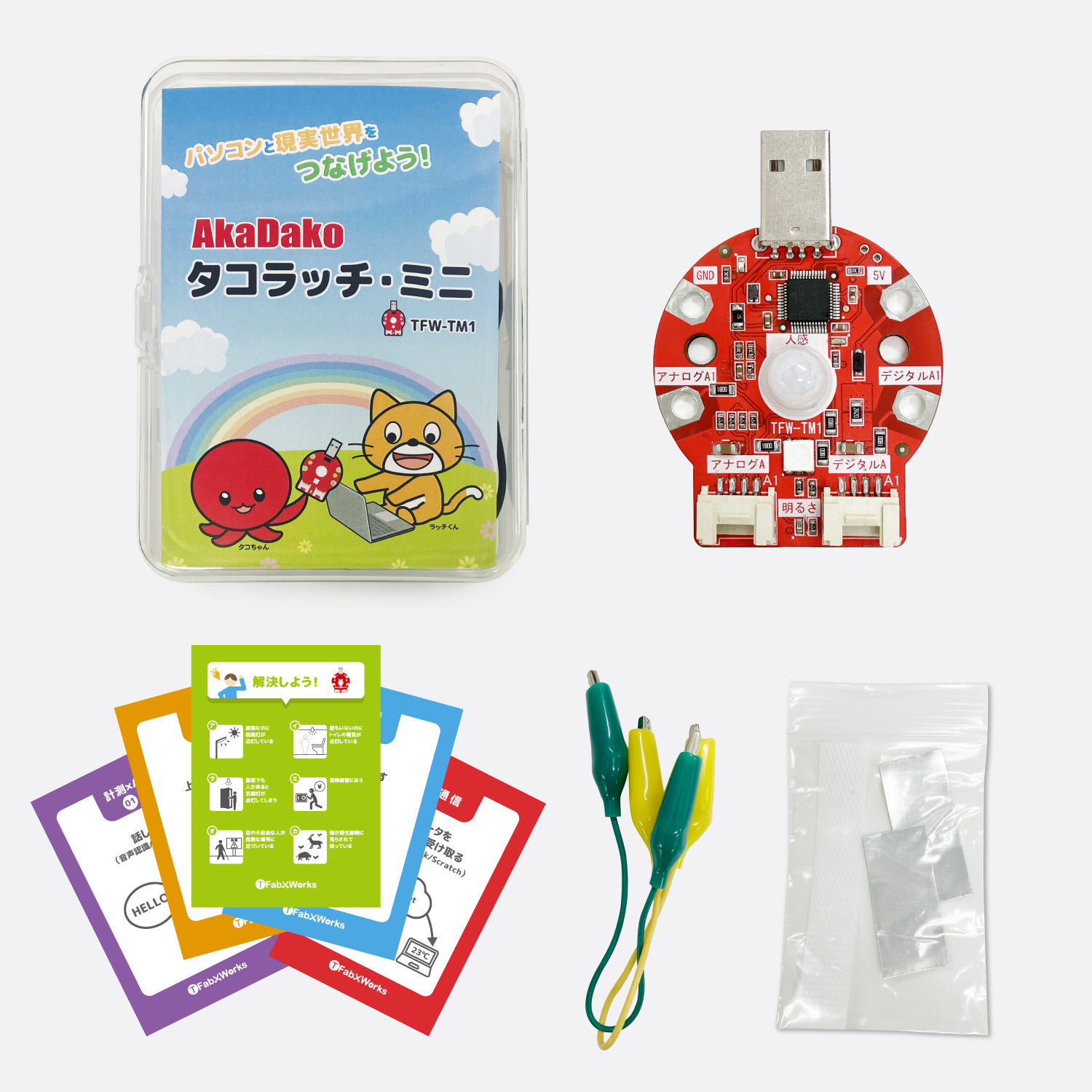

Product contents

• Main unit x1
• Problem-solving programming cards
• Bagworm clip cable x2
• Handmade switch (aluminum tape)

specification

On-board sensors

• Brightness: 0-100
• Human presence: 0,1 (detects changes in infrared light)

Installed actuator

• Full color LED (24bit color x 1)

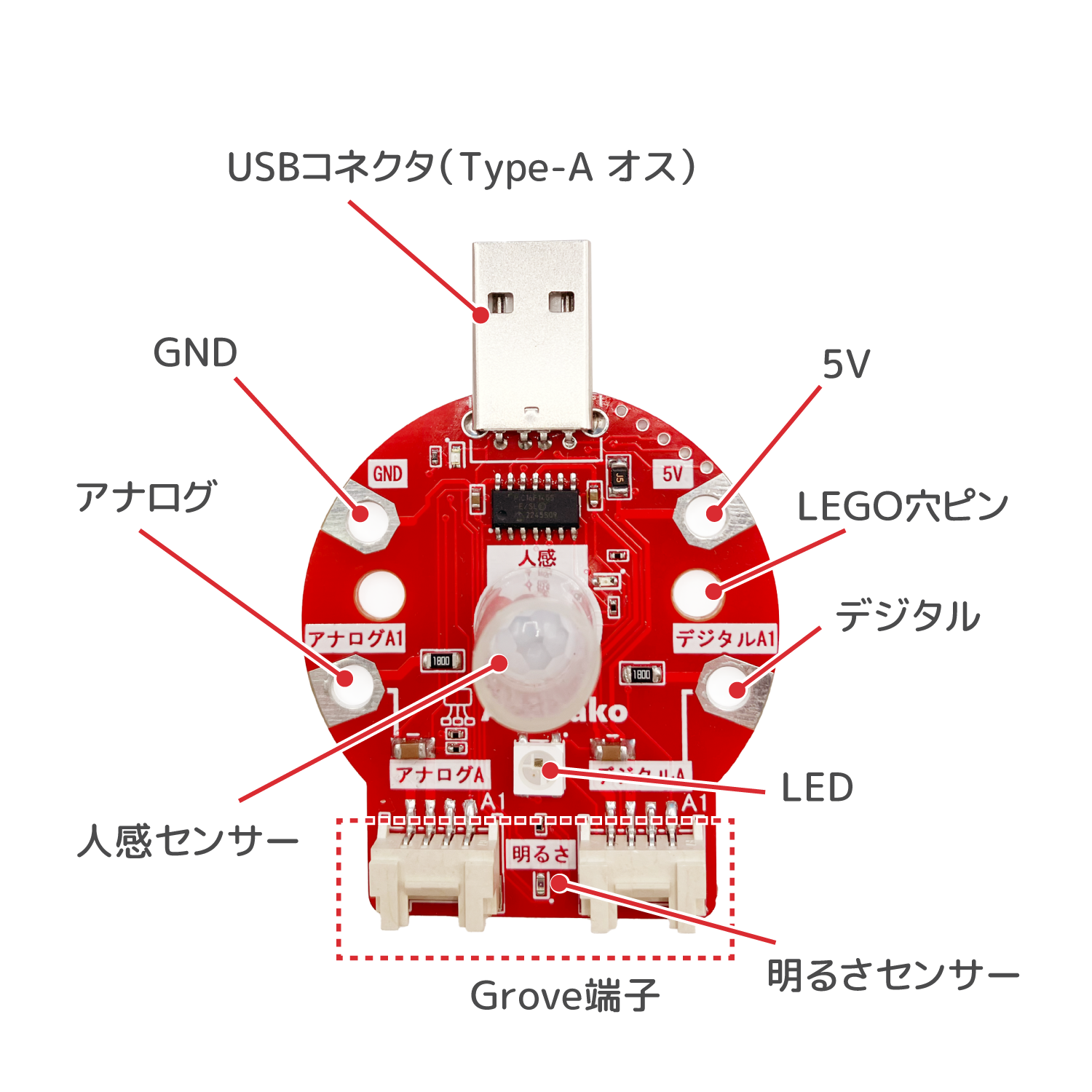

Input/output terminal

• Clip terminals: Analog input x 1, digital input/output x 1, 5V output, GND
• Grove Terminals: 1 Analog Input (Primary only), 1 Digital Input/Output (Primary only)
• Type A Male

Operating environment

• Supported OS: Windows 10 or later, ChromeOS 89 or later, iOS15 or later
• Supported browsers: Chrome 89 and later, Edge 89 and later, Scrub 1.1.1 and later
• It works with Scratch's mutual environments Xcratch and Stretch 3. Click here for instructions on how to use it.

Precautions

For iPad users

You need to install the Scratch-specific browser "Scrub". Also, if you use a servo motor by connecting the TacoLatch Mini to an iPad with a Lightning connector, the servo motor may become unstable. For more information, please check here .
